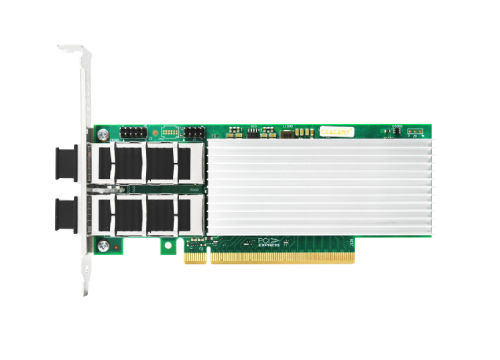

CEACENT AN8810-QSF2 is a PCI Express 4.0x16 QSFP28 dual port 100G Ethernet server adapter independently developed by Shenzhen Jiahua Zhongli Technology Co., Ltd. based on the INTEL E810 CAM2 chip solution. This adapter can optimize high-performance server workloads, such as NFV, storage, HPC-AI, and brid cloud services, so that system I/O is no longer a bottleneck for high-end network applications. At the same time, this adapter card can bundle and aggregate multiple ports simultaneously to achieve fault tolerance and redundancy to ensure network performance or expand network bandwidth. It can detect and route communication from faulty ports to other members in the same group in real time to achieve uninterrupted operation. High performance communication. AN8810-QSF2 not only has stateless offloading, but also supports RIWARP/RAMD technology to efficiently handle high traffic data transmission. At the same time, the controller can directly communicate with the processor cache without the need to bypass system memory, thereby reducing latency, increasing system I/O bandwidth, and reducing energy consumption. It is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.
Main features:
Application Device Queue (ADQ)
Dynamic Device Personalization (DDP)
Supports RDMA iWARP and RoCEv2
Port speed: 100G
Port type: QSFP28 * 2
Bus type: PCI Express (PCIe) 4.0 0x16
