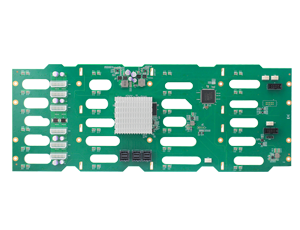

The CEACENT CC3X24-24S storage server backplane is a customized product launched by Xi Microelectronics Company for adapting to a series of products -4U 24 bay storage servers, and can also be adapted to ultra micro storage servers. Backboard adopts mature LSI 35X Ex The amder main control scheme is equipped with 6 large PIN power supply ports and 2 SFF8643 data access ports, which can connect up to 24 SAS/SATA disks with a 12Gb/S transmission rate and fast transmission, leading the way forward. The front is equipped with a cascaded interface, which can easily expand more storage positions and flexibly configure application solutions. The MAX-V management chip is embedded, and the CPLD signal code can monitor the working status of the hard disk in real-time through the chip, and the LED status indicator light can be used in a timely manner Feedback situation, high compatibility and stability. CC3X24-24S provides advanced management functions and storage technology, with reliable scalability and high availability.
CC3X24-24S is made with TG170 high-temperature resistant board, 8-11 layers of PCB stacked design, and high-density technology; Independent chip cooling layer, magnetic circuit shielding layer, high-speed circuit, ensuring signal integrity; With its efficient design, while ensuring excellent design; It also takes into account flexible and powerful resource expansion capabilities, high temperature resistance, strong heat dissipation, high impedance, and excellent reliability. It is often used for business applications of small databases, enterprise informatization, online games, WEB search, file services, VOD, Mail, virtualization, medium-sized databases, enterprise informatization, IDC/ISP/ICP/ASP, and other network and information operators.
Instructions for using CEACENT CC3X24-24S:
1. Supports 24 SAS/SATA (SFF8482) Expander extensions
2. Broadcom (Lsi) SAS master control scheme with 12G/S transmission rate.
3. Six large 4PIN power supply ports
4. Provide two data access ports and a cascading interface for easy expansion.
5. Reserve two COM debugging interfaces.
Ximicroelectronics can be applied to multiple chassis factories according to customer needs, with physical structure dimensions of 2U/12 4U/24 4U/36. Please consult the customer first when placing an order. For more product information, please contact online customer service.
Ximicroelectronics can be applied to multiple domestic chassis factories according to customer needs, with physical structure dimensions of 2U/12 4U/24 4U/36. Please consult the customer first when placing an order. For more product information, please contact online customer service.
