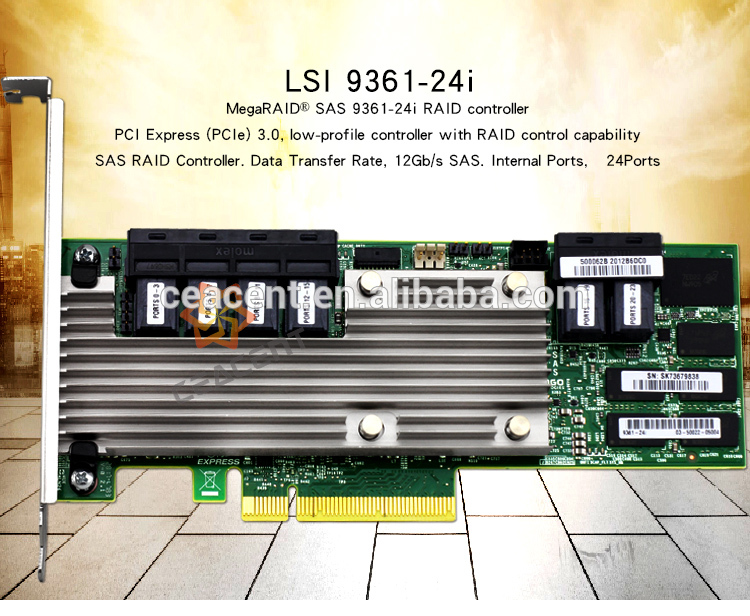

Data center, web, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance todays applications and end users demand. The MegaRAID SAS 9361-24i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.
Connect up to 240 SATA or SAS drives with eight internal and eight external 12Gb/s SAS ports
Provides internal storage and RAID data protection to address a wide range of storage performance and capacity requirements
Support critical, high-bandwidth applications with PCIe 3.0 connectivity
Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
Add more protection and peace of mind CacheVault flash cache protection
Features
• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50, and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during array rebuild or reconstruction (RLM)
• Single controller multipathing
• Load balancing
• Configurable stripe size up to 1 MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity
• SSD support with SSD Guard technology
• Patrol read for media scanning and repairing
• 64 logical drive support
• DDF compliant Configuration on Disk (COD)
• S.M.A.R.T. support
• Global and dedicated Hot Spare with Revertible Hot Spare support
- Automatic rebuild
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays
• Enclosure management
– SES (inband)
– SGPIO (sideband)
• DataBolt bandwidth optimizer technology support for compatible expander-based enclosures
• Shielded state drive diagnostic technology
Operating Temperature Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (CVPM02): 55°C
Operating Voltage +3.3V, +12V
MTBF (Calculated) >3,000,000 hours at 40°C
Hardware Warranty 3 years; with advanced replacement option
MegaRAID Management
