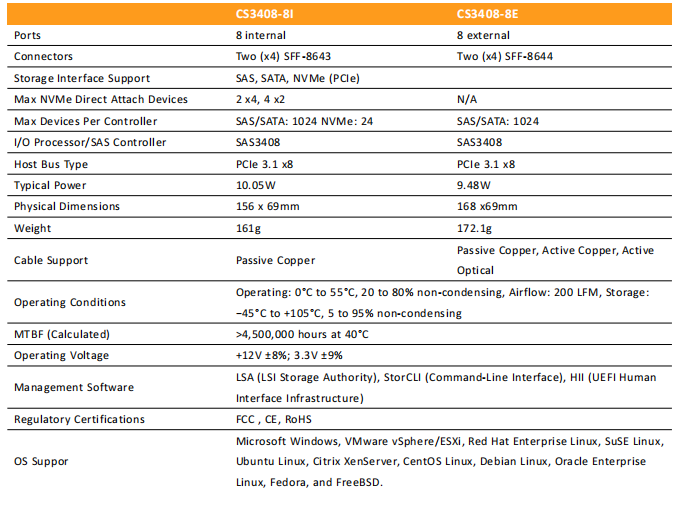

CEACENT CS3408-8E is a PCI Express 3.1 * 8 eight port HBA hard disk expansion card independently developed by CEACENT based on the LSI SAS3408 main control scheme. The adapter automatically negotiates backward compatibility with previous SAS and PCI-E versions; This HBA expansion card comes with two Mini SAS HD SFF8644 * 2 channel types and supports up to 8 12Gb/S SAS/SATA hard drives;
The product serves four main target markets: wireless communication, wired infrastructure, enterprise storage, and industrial and other. CEACENT has extensive experience in storage solutions and over 20 years of independent research and development projects. It is a well-known benchmark enterprise in the field of server boards in the industry.
• the third mock examination storage interface
SFF-8680 Bay x1 SAS x1 SATA x2 SAS (multi link) 2 x1 SAS (dual port) MPIO) − SFF-8639 (U.2) Bay −x2, x4 NVMe
• Supports data transfer rates of 12, 6, 3Gb/s SAS and 6, 3Gb/s SATA
Up to 8 storage interface PCIe links. Each link supports x4 or x2 link widths, with up to 8.0 GT/s per channel (PCIe 3.0)
Compliant with SFF-9402 standard, connector pins
Compliant with SFF-8485 standard, SGPIO
PCIe 3.1 host interface - supports x8, x4, x2, x1 PCIe channels, with a transfer rate of up to 8.0 GT/s per channel
