CEACENT CS3224-24I is a PCI Express 3.0 * 8, 24 port HBA hard disk expansion card independently developed by CEACENT based on the LSI SAS3224 main control scheme. The adapter automatically negotiates backward compatibility with previous SAS and PCIe;
This HBA hard drive expansion card adopts 6 internal Mini SAS HD SFF8643 TWO * 6 channel types, and provides SAS data transfer rates of 12, 6, and 3 Gb/s per channel, as well as SATA data transfer rates of 6 and 3Gb/s per channel. Can provide over 1 million IOPS.
The product serves four main target markets: wireless communication, wired infrastructure, enterprise storage, and industrial and other. CEACENT has extensive experience in storage solutions and over 20 years of independent research and development projects. It is a well-known benchmark enterprise in the field of server boards in the industry.

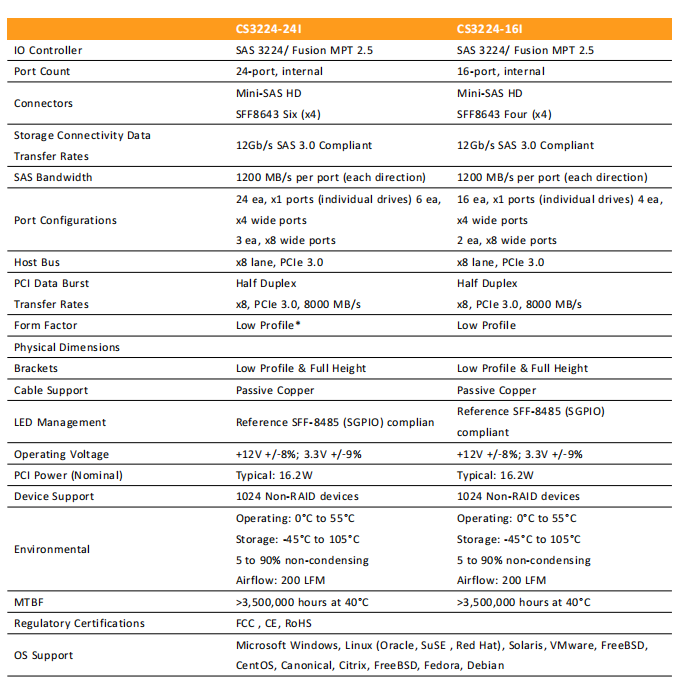

key characteristics
• Supports 16 internal or 24 internal 12Gb/S SAS and SATA ports
Eight channel, PCI Express 3.0 host interface
• Supports solid-state drives, mechanical hard drives, and tape drives
High performance, with a data transfer rate of 12Gb/s and multiple SAS cores
Up to 1.5 million IOPs @ 4KB block size
• Maximum sequential read throughput of 6.5 GB/s
