Product Condition: New

Specifications

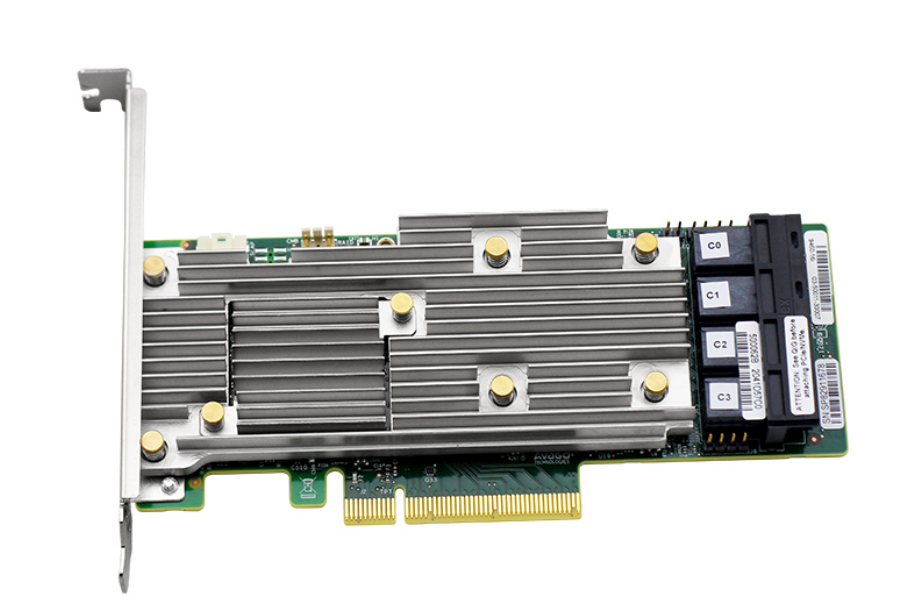

• Mfr Part Number: 05-50011-02/ 9460-8I SGL

• Features:

  • Connect up to 255 SAS/SATA devices or 24 NVMe devices per controller

  • Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors

  • Support critical, high-bandwidth applications with PCIe 3.1 connectivity

  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60

  • Add more protection and peace of mind with CacheVault flash cache protection

• Ports: 8 internal

• Connectors: Two (x4) SFF-8643

• Storage Interface Support: SAS, SATA, PCIe (NVMe)

• Max PCIe (NVMe) Direct Attach Devices: Two x4, Four x2

• Max Devices Per Controller: SAS/SATA - 255, NVMe - 4 x4, up to 24 x2 or x4

• Cache Memory: 2 GB 2133MHz DDR4 SDRAM

• I/O Processor / SAS Controller: SAS3508

• Host Bus Type: PCI-Express 3.1 x8

• Cache Protection: CacheVault CVPM05

• Key RAID Data Protection Features:

  • RAID levels 0, 1, 5, and 6

  • RAID spans 10, 50, and 60

  • SDS Personality with EPD and JBOD

  • Online Capacity Expansion (OCE)

  • Online RAID Level Migration (RLM)

  • Auto resume after loss of system power during array rebuild or reconstruction (RLM)

  • Single controller Multipathing

  • Load Balancing

  • Configurable stripe size up to 1MB

  • Fast initialization for quick array setup

  • Check Consistency for background data integrity

  • SSD Support with SSD Guard technology

  • Patrol read for media scanning and repairing

  • 64 virtual drive support (32 for 9440)

  • DDF compliant Configuration on Disk (COD)

  • S.M.A.R.T support

  • Global and dedicated Hot Spare with Revertible Hot Spare support

    • Automatic rebuild

    • Enclosure affinity

    • Emergency SATA hot spare for SAS arrays

  • Enclosure management

    • SES (inband)

    • SGPIO (sideband)

  • DataBolt bandwidth optimizer technology support for compatible expander-based enclosures

  • Shield state drive diagnostic technology

• Typical Power: 14.16W

• Airflow: 250LFM @ 55C

• MTBF (Calculated): >3,000,000 hours at 40C

• Operating Voltage: +12V +/-8%; 3.3V +/-9%

• MegaRAID Management Suite: LSI Storage Authority (LSA) StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure)

• Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/ UL 60950; RoHS; WEEE

• OS Support: Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support

• Dimensions: 6.127 x 2.712 inch / 155.65 x 68.90 mm

• Package Contents: MegaRAID 9460-8i, QIG, LP bracket
