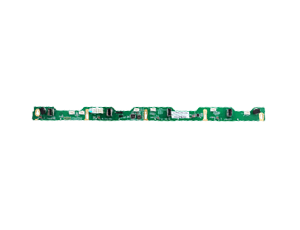

CEACENT CBP-9DR204U is a 4-disk pass-through backplane for 1U 4-disk customizable storage server launched by Shenzhen Jiahua Company. The product size is 427 x 25 x 2.4, using high-speed plate, to ensure stable operation in high temperature environment. It is often used in the business of network and information operators.

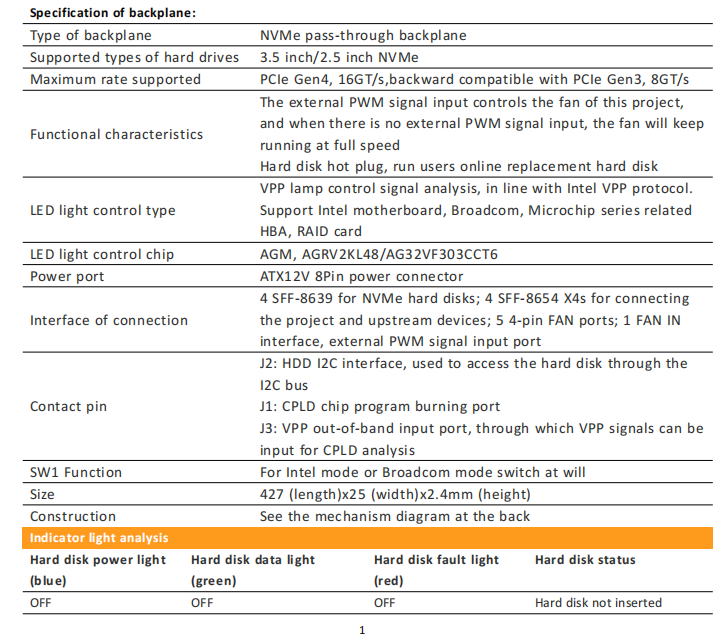

The built-in pass-through backplane can connect up to 4*NVMe SSD disk connection scheme is optional, provides 1 8PIN power supply port, 4 SFF-8639, used to connect NVMe hard disk; Four SFF-8654 X4s are used to connect this project and upstream devices. Secondly, an AGM CPLD chip was embedded in the backplane, which could support VPP signal interpretation and monitor the working state of the hard disk in real time. The lamp control management chip is used to feedback the use of the LED status indicator in time. Support Broadcom, Microchip's full range of HBA, RAID cards and Intel motherboard VPP lighting.
