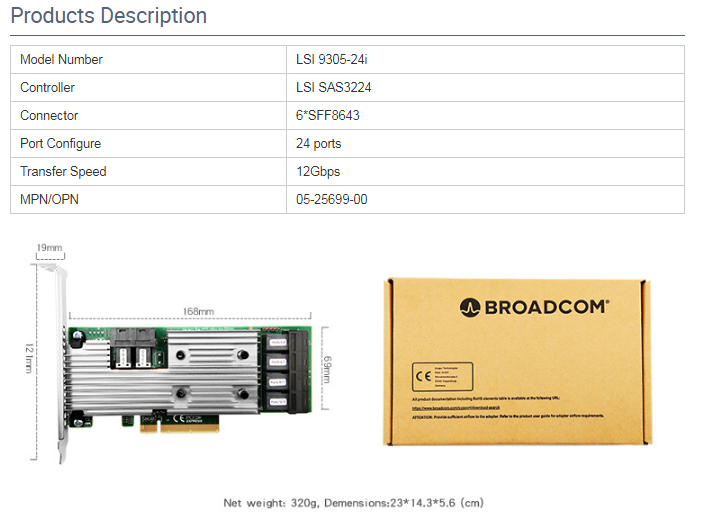

Broadcom Introducing the industry's first single-chip, low-profile* 24-port SAS/SATA HDD and SSD direct attach Host Bus Adapter. Using the SAS3224 IOC, this HBA achieves over 1.5 million IOPs with minimal latency and 6,400 MBps throughput performance. The SAS 9305-24i HBA enables data center scaling by offering the ability to connect up to 24 SAS or SATA drives directly or achieve maximum connectivity through expanders.
1. Provides maximum connectivity with 24 SAS/SATA devices for direct attach storage; or up to 1024 SAS/SATA devices using expanders
2. Supports critical applications with the bandwidth of PCIe® 3.0 connectivity
3. Delivers more than 1.5 million IOPS for performance-sensitive applications
4. Top edge connector cable exit extends into full height card area.
