| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distrib. Inventory | No |
| RAID-on-Chip Controller | LSISAS3108 dual core RAID on Chip (ROC) |

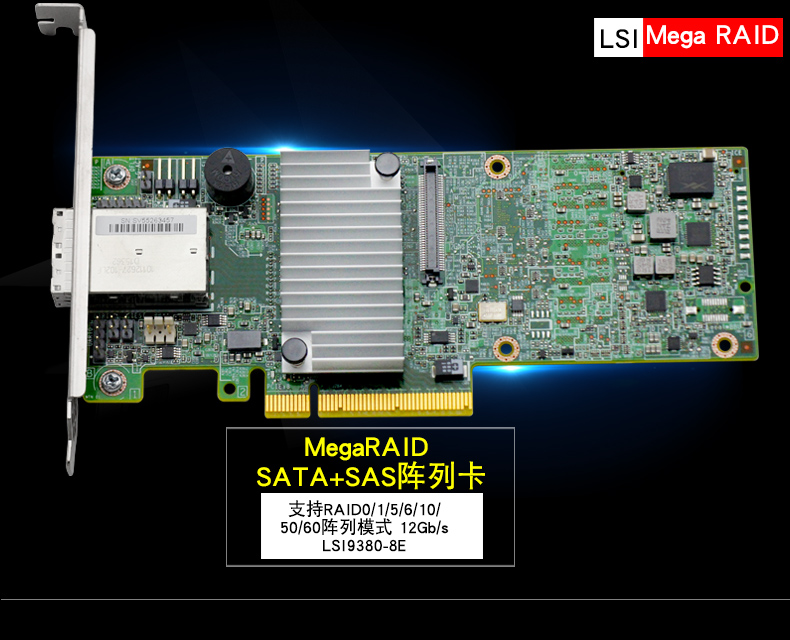

| What's in the box | MegaRAID SAS 9380-8e, QIG, LP bracket |
| Generation | 12 Gb/s |
| External Ports | 8 |
| External Connectors | 2 Mini-SAS HD SFF8644 |
| RAID Management Software |
LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| Management Software | |
| Cache Protection | Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM02, mounting clip, and cable |
| Physical Dimensions | MD2 Low profile (6.6" x 2.536") |
| Host Bus Type | x8 lane PCI Express® 3.0 |
| Cache Memory | 1GB 1866MHz DDRIII SDRAM |
| Data Transfer Rates | Up to 12Gb/s per port |
| Devices Supported | Up to 240 SATA and/or SAS devices |
| Internal Connectors | |
| MTBF | 1,203,345 hours |
| Operating Temperature | |
| Operating Voltage (V) | +3.3V, +12V |
| OS | Extensive support includes Microsof® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems |
| Regulatory Certifications | BSMI, C-tick, CSA C22.2, EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3, FCC Class A, Class B, RRL for MIC, UL, UL1950, VCCI |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
| I/O Processor / SAS Controller |
