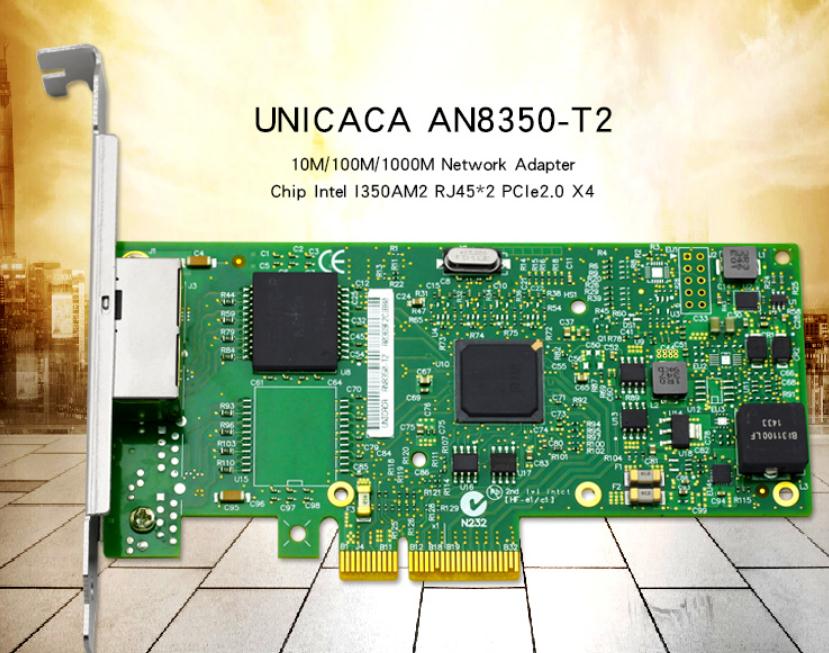

CEACENT AN8350-T2
Brand: CEACENT
Model: AN8350-T2
Type : Dual Port Gigabit Ethernet PCI-E

Product Description

1. AN8350-T2 adopts PCI-E X4 design and integrates two RJ45 power interface, designed for server and high-end equipment.

2. Its performance was optimized so that system I/O was no longer the bottleneck of high-end network applications, enabling fault tolerance through grouping, and the traffic of failure ports would be routed to other members of the group.

3. There is an integrated hardware acceleration function that performs TCP/UDP/IP authentication and staging and TCP segmentation tasks.

4. The host processing technology can load accelerators and release CPU resources to process other applications. It is based on Intel controller Intel I350AM4 dual port gigabit Ethernet MAC+PHY.

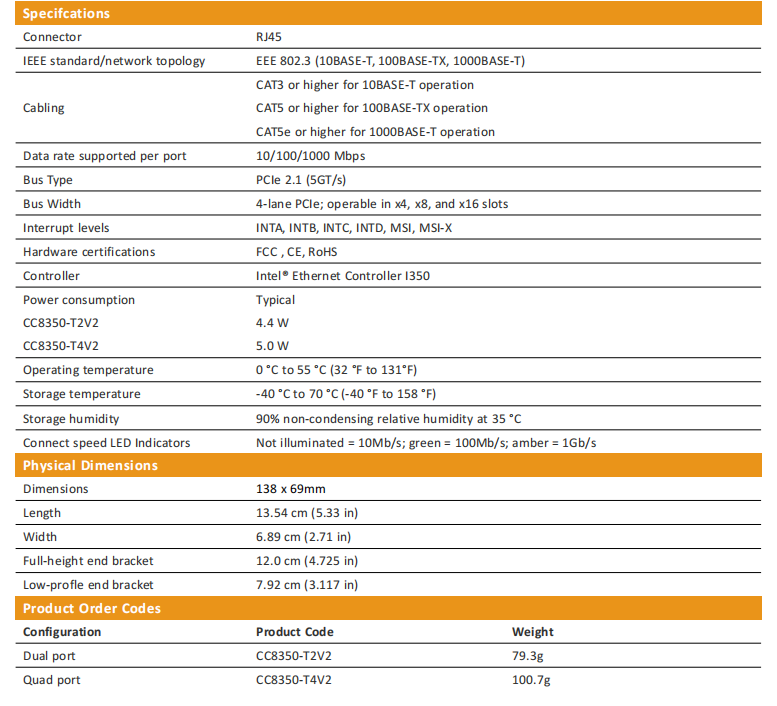

Product parameters

Product model: Unicaca AN8350-T2

Applicable network type: gigabit Ethernet card

Transmission rate :1000Mbps

Main chip: Intel I35AM4

Bus type: pci-e 4 X

Transmission medium type: 3/4/5 class UTP

LED indicator: 4

Network interface type: RJ-45 interface

Interface number: dual port

Application: server

Working temperature: 0 ~ 55 ℃

Working humidity: 85%

Storage temperature - 20 ~ 65 ℃

Storage humidity: 85%

Other features: support NFS,Iscsi,g PXE, remote wake-up (WOL), PXE, VLAN convergence, VM ESXI5.5, etc.

Support operating system: Microsoft Windows 2003Server

                                                 Microsoft Vista, the Windows

                                                 Virtual Server 2005,

                                                 Red Hat Enterprise

                                                 Linux X 4 or later

                                                 SUSE SLES 10 or later

                                                 9.2 or newest Professional

                                                 FreeBSD 5. X or later
